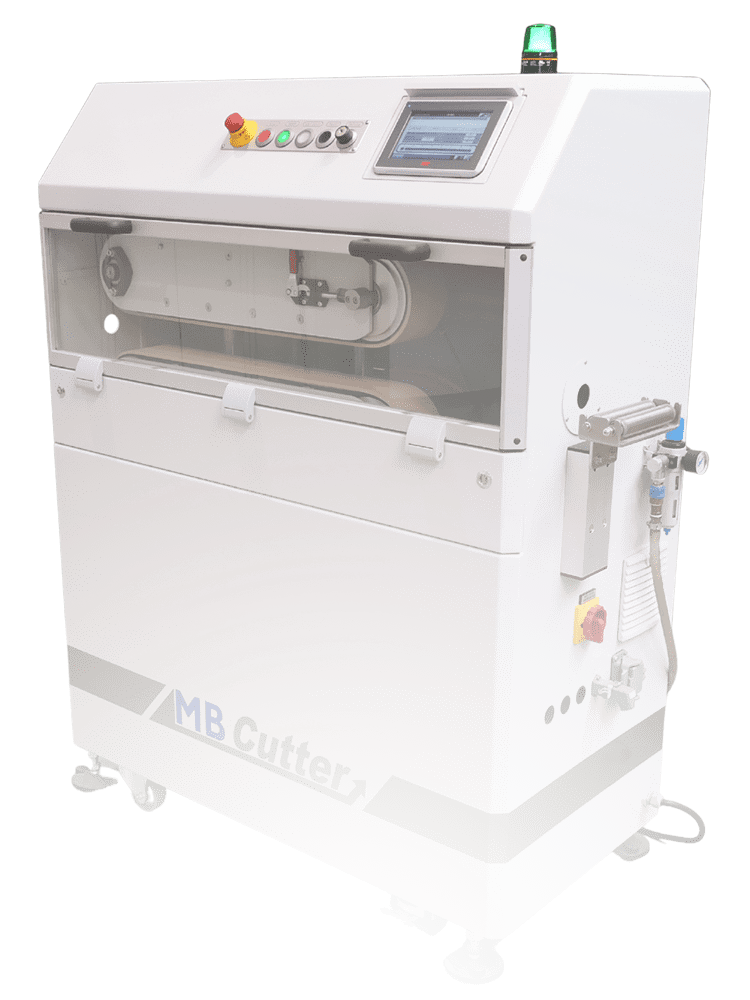

The robust caterpillar haul-off for pipes, hoses, and profiles: Belt Haul-off BP
- Uniform, deformation-free transport at up to 300 m/min
- Individually adjustable contact lengths, belt widths, nip pressure, and control
- Robust construction for continuous operation in industrial environments
Maximize your production efficiency!
Engineered for highest precision and maximum adaptability
In extrusion, one thing is paramount: smooth, precisely controlled material transport. Especially during haul-off, it is crucial that cables, hoses, pipes, or profiles are guided uniformly through the line – without deformation or slippage. Every application is different: various materials, dimensions, and production speeds place unique demands on the technology.
That’s precisely why a standard belt haul-off is often insufficient to ensure consistently high quality. What’s needed is a solution that can adapt to on-site conditions – technically flexible, process-reliable, and durable. The Belt Haul-off BP was developed precisely for this: to operate reliably in continuous industrial use while being precisely adaptable to your individual requirements – for maximum control and precision in the haul-off process.
Consistent product quality through precise haul-off control
Process reliability even with changing materials
Seamless integration into existing production lines

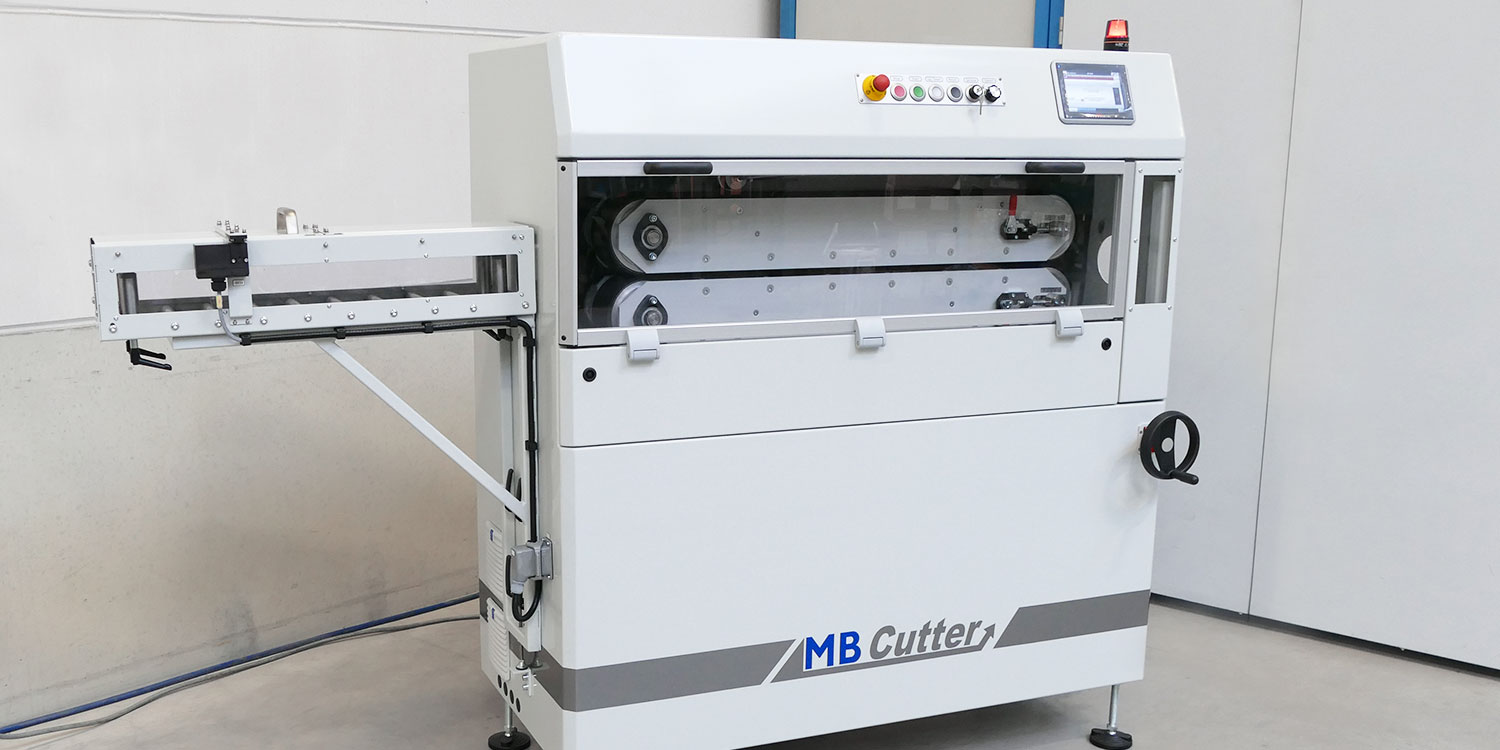

The focus is on the precise transport of your product
The Belt Haul-off BP combines powerful servo drives with finely adjustable nip pressure and a well-engineered handling concept. Thanks to contact-length-dependent configurations, belt widths up to 200 mm, and speeds up to 300 m/min, it can be precisely tailored to your production.

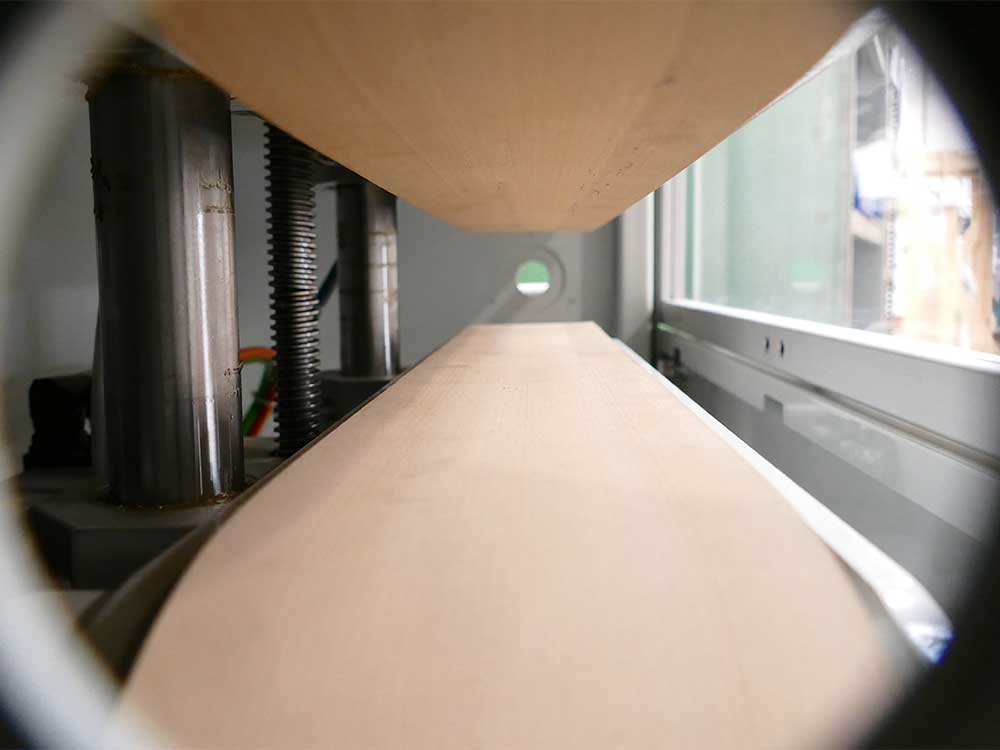

Secure Pull
The Belt Haul-off BP ensures uniform, tension-free transport – even at high speeds or with sensitive materials. This keeps your product precisely in shape and your process stable.
Custom-fit
Whether contact length, belt width, or control – the Belt Haul-off BP is precisely adapted to your application. This means it adapts to your process, not the other way around.

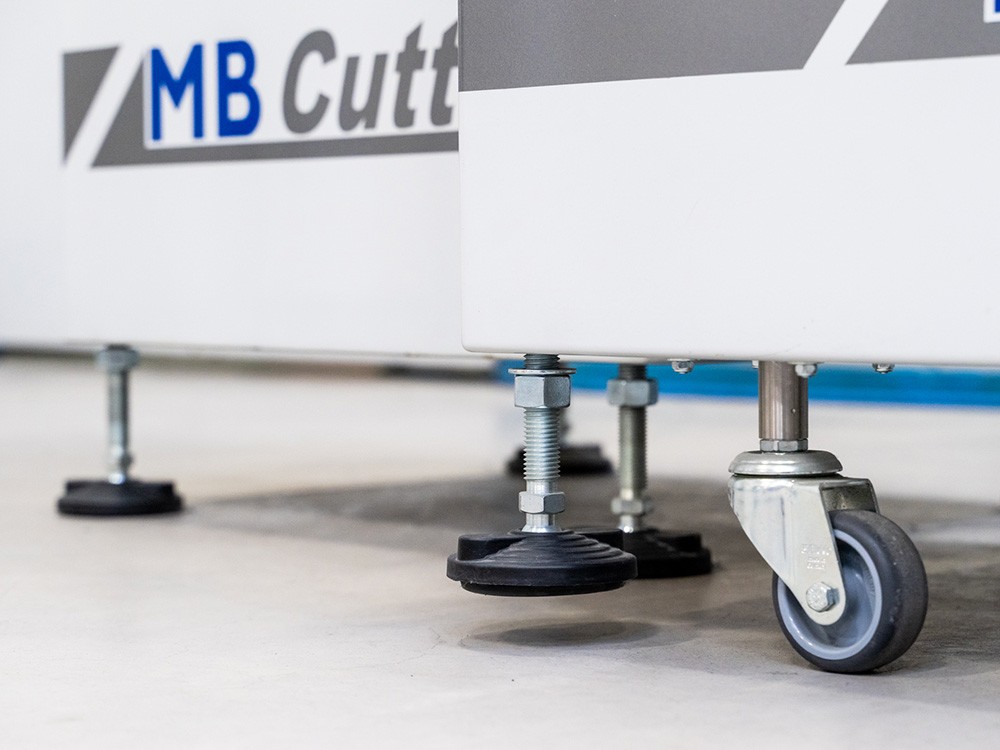

Durable
With robust welded construction, durable mechanics, and well-engineered handling, the BP is designed for continuous use in harsh production environments. Maintenance-friendly and reliable – day after day.
Why leading industrial companies rely on us
Experience
25 years of experience in the development of extrusion downstream machines, special machines, and welded assemblies
Trust
Our machines are used worldwide in leading production facilities.
Reliability
Robustly built and designed for decades of reliable operation
Individuality
Variable designs, finely adjustable processes, and well-conceived special solutions.

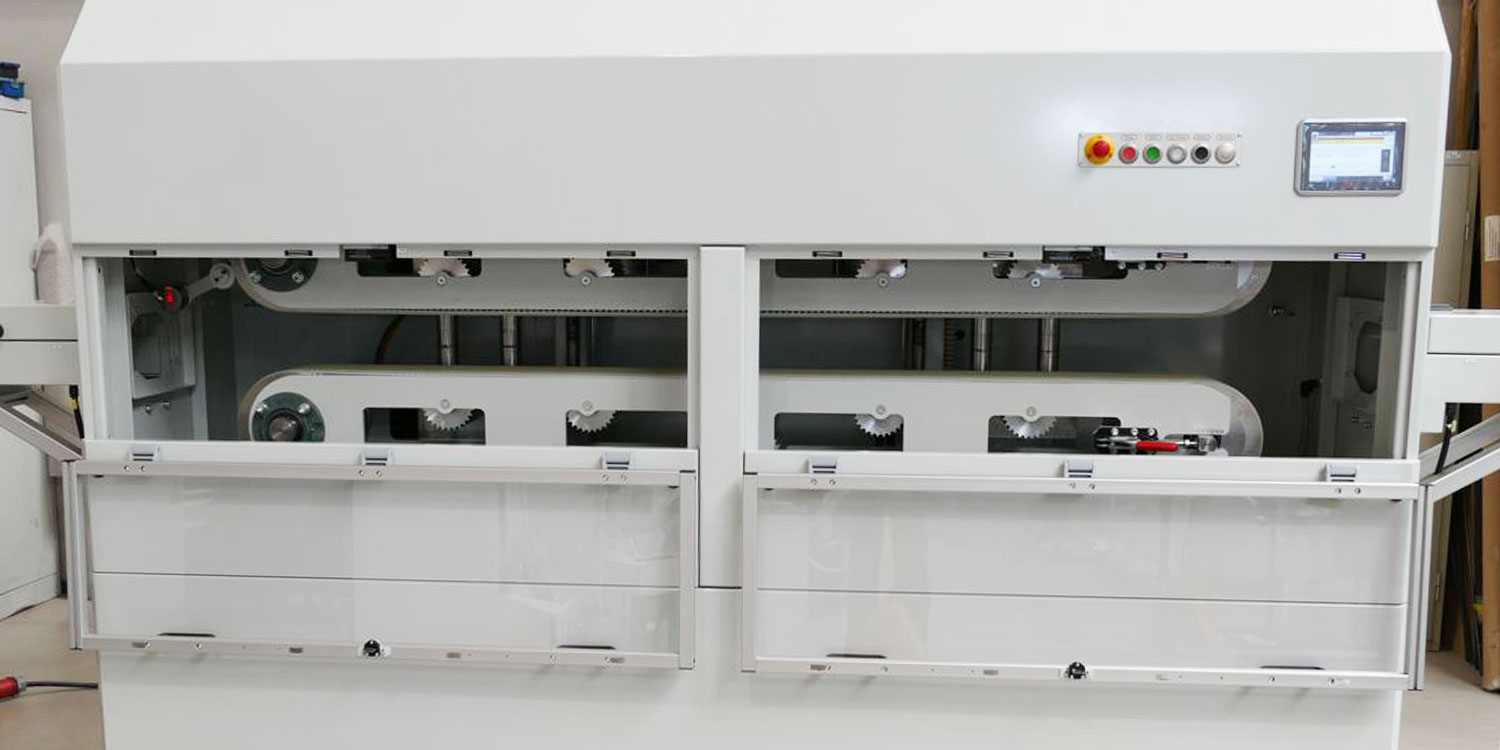

Functions and Features of our Belt Haul-off BP
Every assembly – from the drive and gap adjustment to the sensor technology – is carefully coordinated.
And: Upon request, we deliver more than just the haul-off. With non-contact sag control, rotary cutter, or winder, you receive complete systems from a single source.

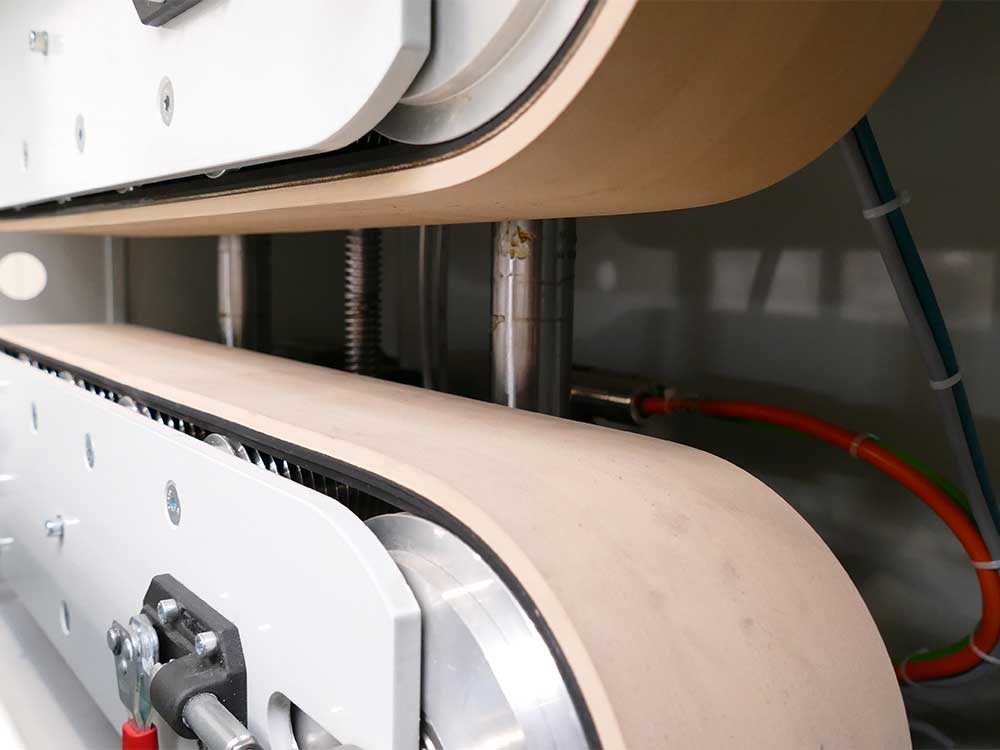

- Servo-driven belts for exact, synchronous product haul-off
- Adjustable nip pressure – controllable manually or via proportional valve
- Electric or manual gap adjustment for maximum flexibility

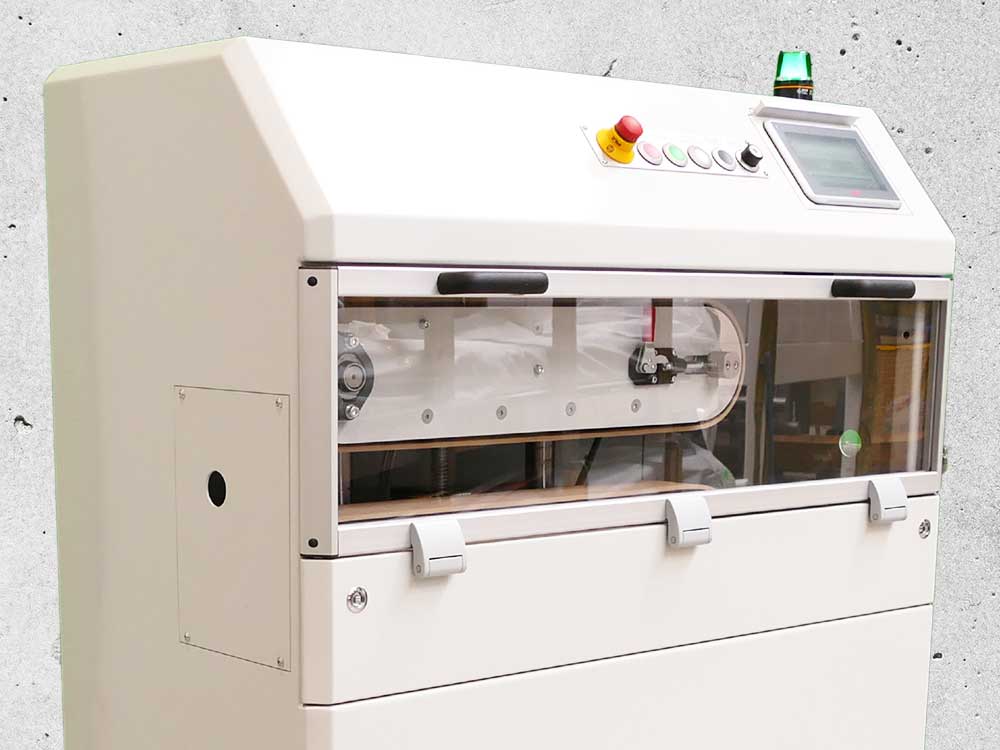

- Pneumatic quick opening of the upper belt for easy loading

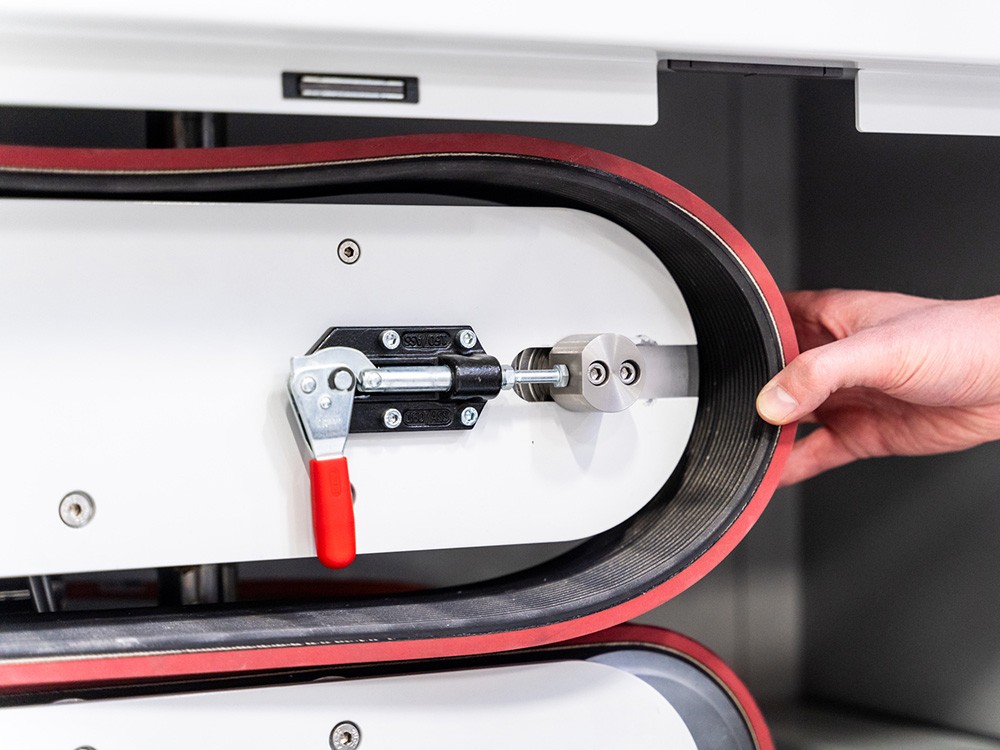

- Tool-free quick-change system for belts for quick maintenance and minimal downtime
- Integrable sensor technology for detecting diameter, ovality, or color marking

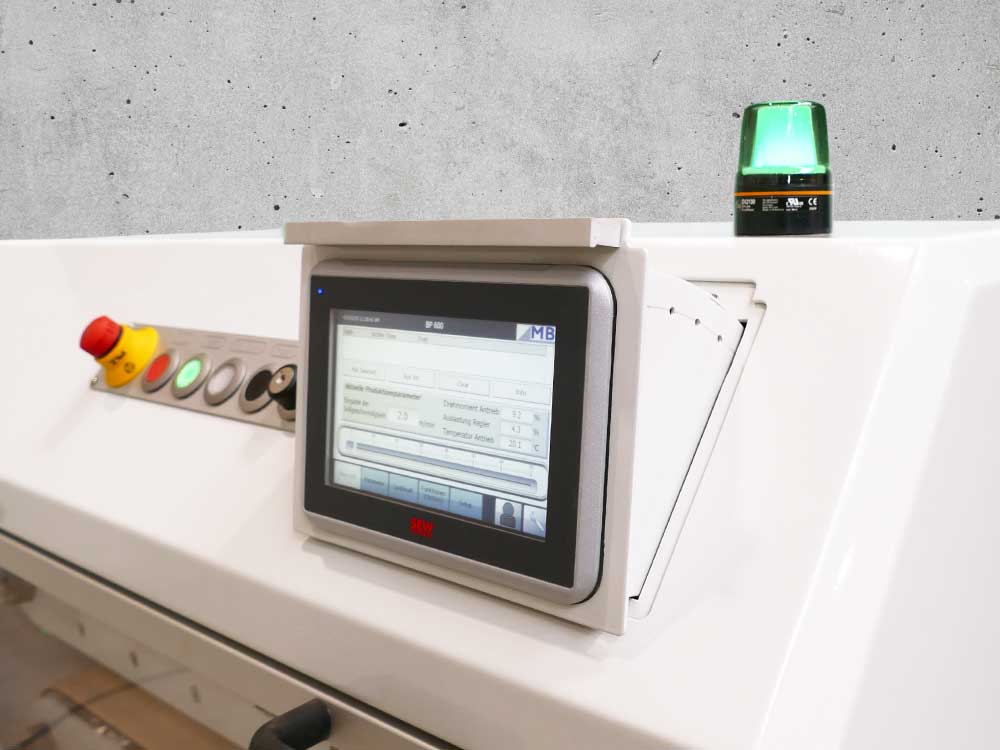

- Connection to all common fieldbus systems for seamless line integration
- Swipe to the side
| BP-250 | BP-400 | BP-600 | BP-1000 | |
|---|---|---|---|---|
| Contact length of belts | approx. 250 mm | approx. 400 mm | approx. 600 mm | approx. 1000 mm |
| Width of haul-off belts | 50 mm | 50 mm | 100 mm | 100 mm |
| Haul-off force (depending on max. speed) | 250 N (1 drive) | 400 N (1 drive) | 800 N (2 drives) | 1000 N (2 drives) |
| Max. Haul-off Speed | 100 m/min | 100 m/min | 300 m/min | 100 m/min |
| Drive Motor | Servo drive | Servo drive | Servo drive | Servo drive |
| Electrical Power Rating | 2.0 kW | 2.0 kW | 3.0 kW | 5.0 kW |
| Dimensions (L x H x W) | 570 x 1340 x 400 mm | 900 x 1360 x 620 mm | 1250 x 1400 x 600 mm | 1250 x 1500 x 650 mm |
| Weight | approx. 100 kg | approx. 200 kg | approx. 280 kg | approx. 770 kg |
Further options on request.
FAQ - Frequently Asked Questions
Each BP is manufactured according to your specifications. We precisely coordinate contact lengths, widths, control integration, and additional functions with you. This creates a solution that perfectly matches your line and your product.
Yes, it supports haul-off speeds of up to 300 m/min with high synchronization accuracy. Even at slow speeds, transport remains uniform and controlled.
Typically cables, hoses, pipes, and profiles – even sensitive or flexible materials can be transported without deformation. The Belt Haul-off BP flexibly adapts to diameter and product shape.
Yes, the BP can be seamlessly integrated into your control system via all common fieldbus systems. Close coordination with your automation environment is part of our project planning.
Yes, we have extensive experience with versions for the pharmaceutical and medical technology sectors. Surfaces, materials, and design can be specifically tailored to these requirements.
