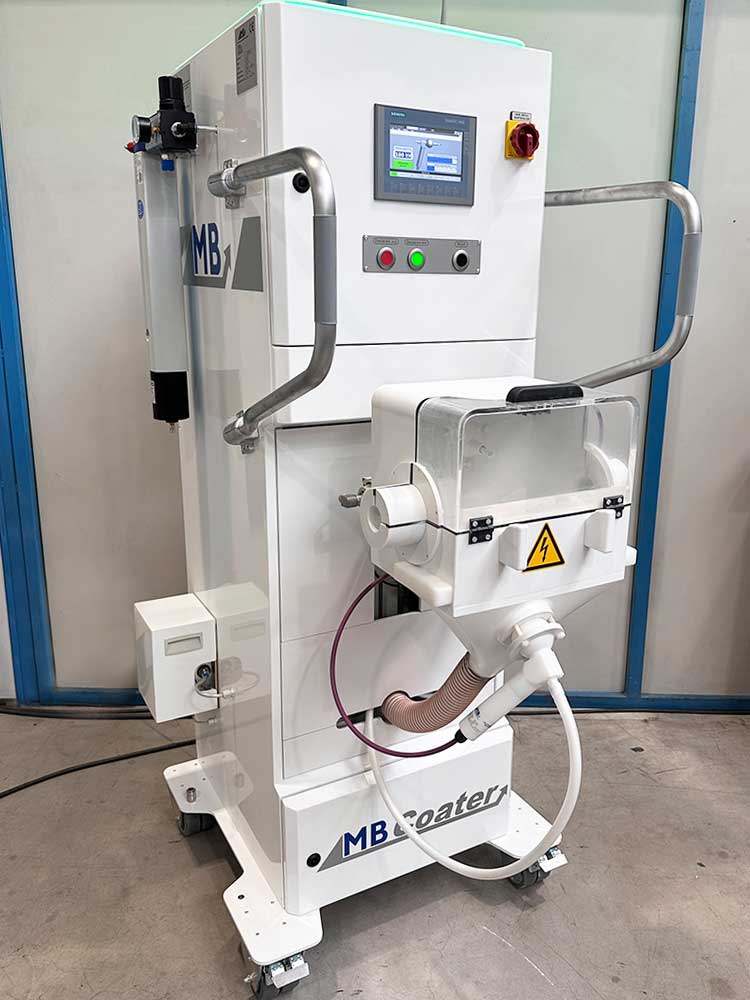

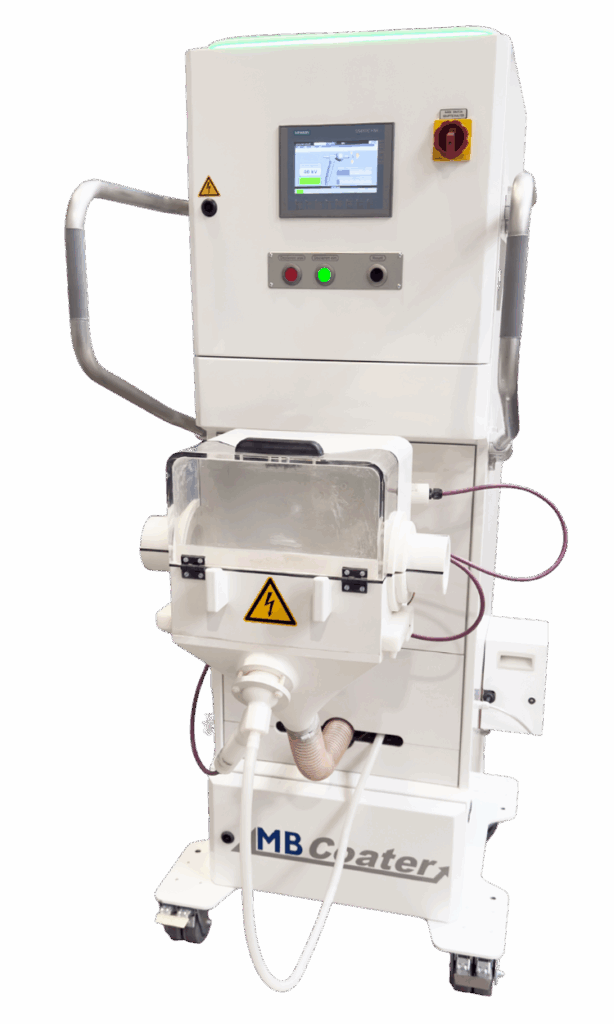

Maximum quality at highest speed: MB Coater Powdering Machine
- Secure powder adhesion through electrostatic high-voltage technology
- Clean production thanks to closed filter system
- Efficient processing at speeds up to 1,500 m/min
Maximize your production efficiency!
Precise powdering saves time, reduces costs, and improves your production results
Precisely dosed and uniform powdering of cables, hoses, or profiles ensures stable processes, less material loss, and a high-quality end product. This way, you avoid rework and scrap, and consistently deliver the best quality.
The MB Coater ensures controlled powder application without dust generation. Your production environment remains clean, cleaning efforts are reduced, and your employees work safely and comfortably. Benefit from a system that operates measurably more productively and economically.
Powder application control for uniform coating
Seamless integration into line controls and fieldbus systems
Fine dosing for minimal powder quantities
The MB Coater Powdering Machine makes the difference
The MB Coater Powdering Machine was developed to ensure the highest precision in powdering – even at speeds of up to 1,500 m/min.
Perfect Adhesion
100% dust-free
Durability
The robust, powder-coated welded construction sets new standards in durability and ease of maintenance. High-quality workmanship and precise manufacturing ensure reliable and trouble-free operation.
Why leading industrial companies rely on us
Experience
25 years of experience in the development of extrusion downstream machines, special machines, and welded assemblies
Trust
Our machines are used worldwide in leading production facilities.
Reliability
Robustly built and designed for decades of reliable operation
Individuality
Variable designs, finely adjustable processes, and well-conceived special solutions.
Functions and Features of our Powdering Machine
Each MB Coater machine is individually tailored to your production – for perfect integration into your production processes.
Depending on the model, the following options are available, among others:
- Powder application control in the powdering machine to ensure the quality of your product

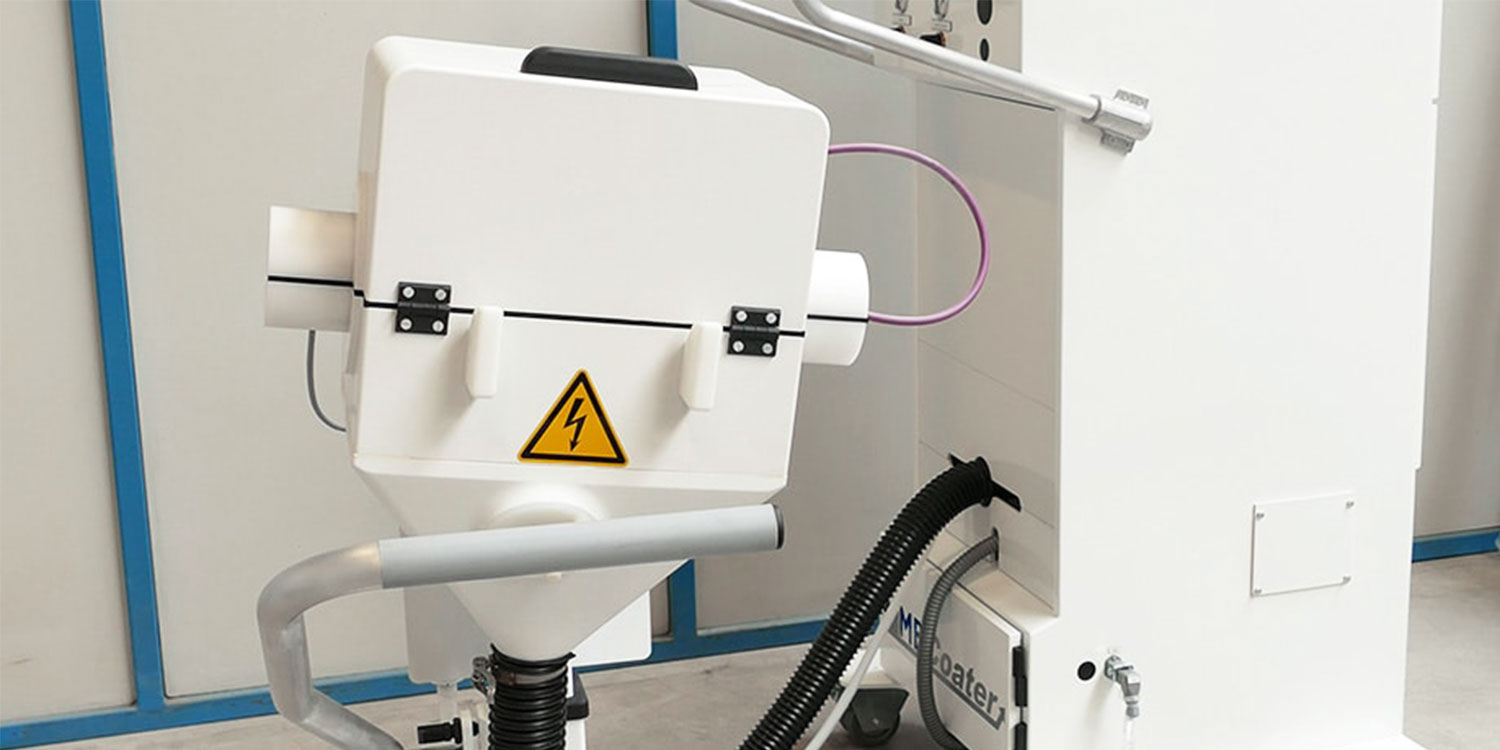

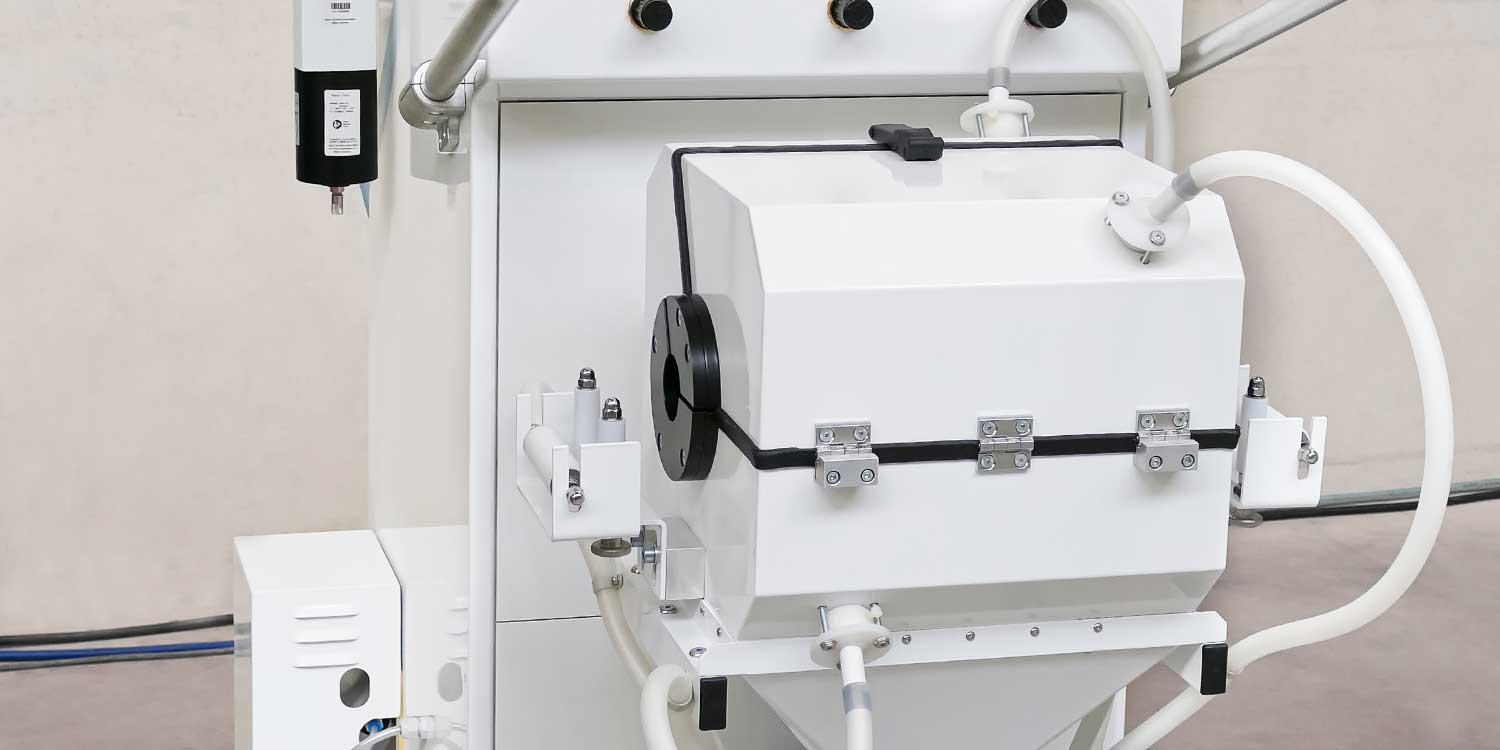

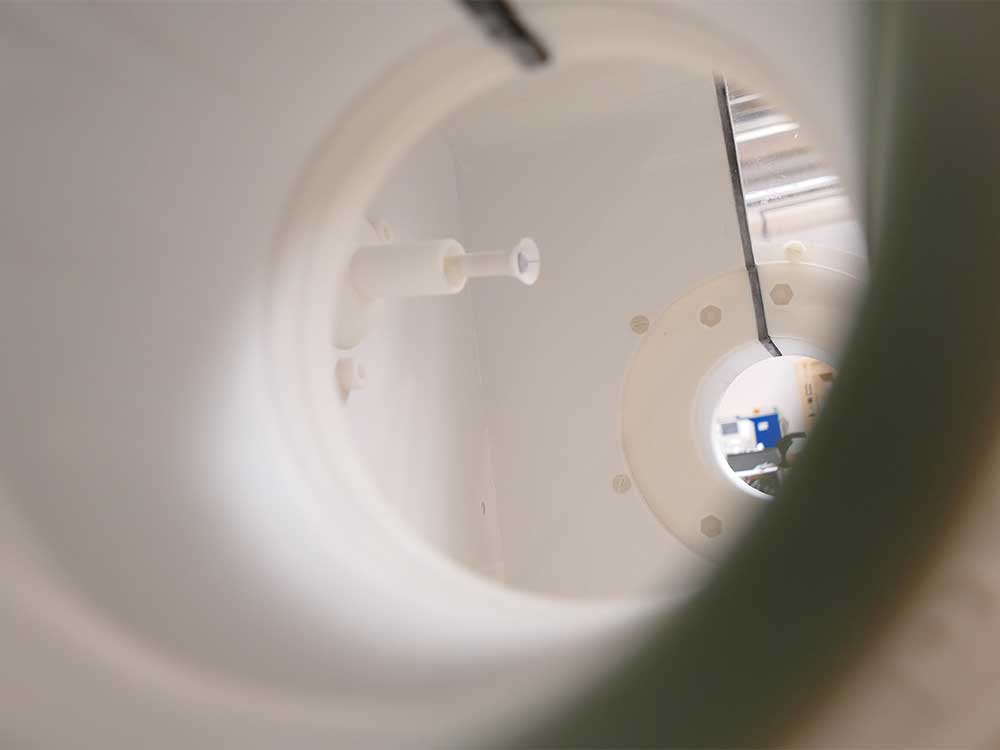

- The coating chamber is tool-free adjustable and can be positioned freestanding
- Fine dosing for applying minimal powder quantities to the product

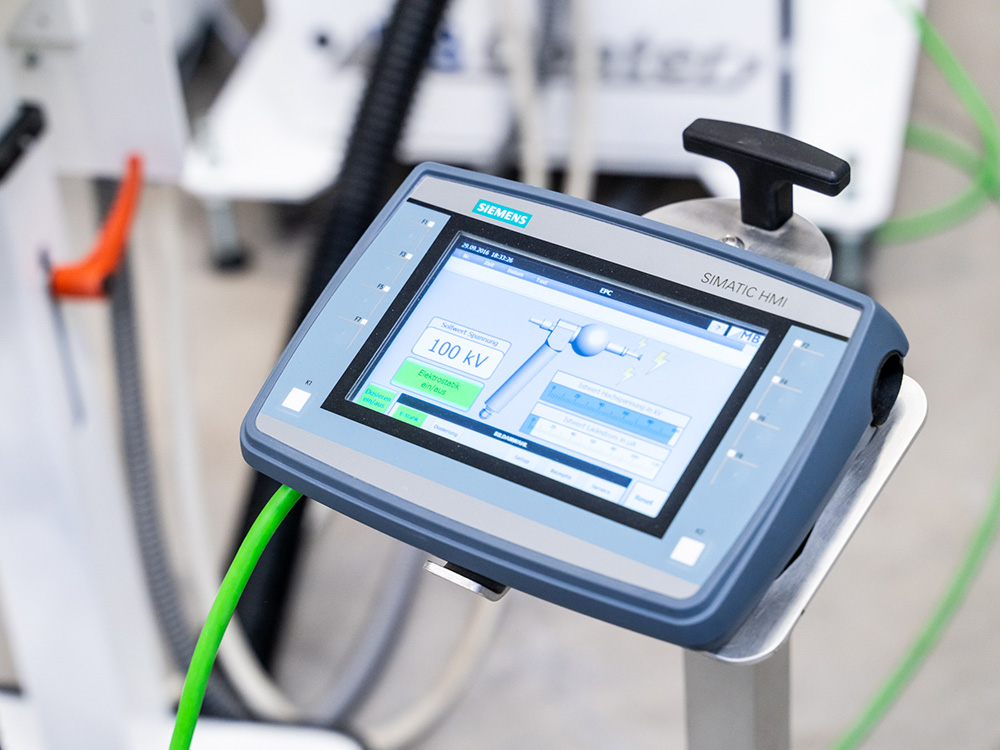

- User and recipe management for secure access and reproducible settings in daily operation

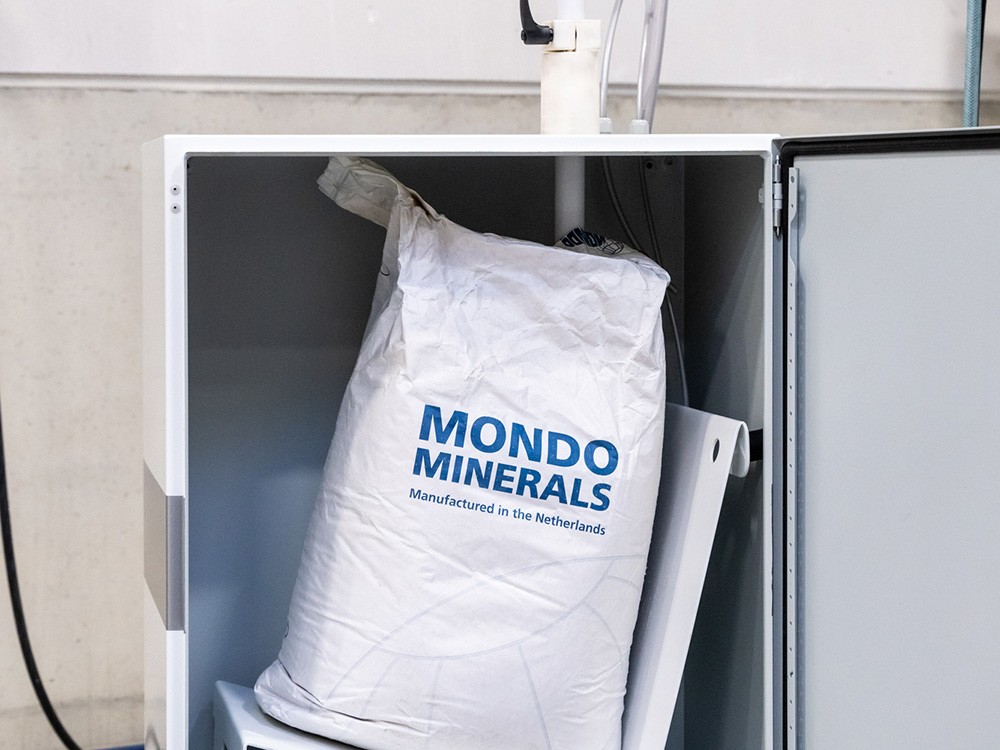

- Direct, automatic refilling from the powder bag thanks to a separate refill container
- Compatible with higher-level line controls and fieldbus systems
- Also usable for graphite in conjunction with a polishing station
| Max. Product Diameter | PC-30: 30 mm, EPC-30/2E: 30 mm, EPC-60/2E: 60 mm |
| Max. Product Speed | 1,500 m/min |
| Min. Powder Throughput | 30 g/min with fine dosing |
| Electrostatics | Integrated in machines EPC-30/2E and EPC-60/2E |
| Max. Powder Throughput | 400 g/min per powder injector |
| Electrical Connection Power | 0.7 kW |
| Compressed Air Consumption | 200 l/min base consumption, 125 l/min per powder injector |
| Dimensions (L x H x W) | 800 x 1950 x 1450 mm |
| Weight | 360 kg |
Further details upon request.
FAQ - Frequently Asked Questions
Yes, thanks to its modular design, the MB Coater can be easily integrated into existing production lines. It can be individually adapted and connected to various control systems.
The electrostatic high-voltage technology with up to 100 kV ensures optimal adhesion of the powder to the product. Even at high production speeds, the application remains precise and uniform.
The closed filter cleaning system prevents powder particles from entering the ambient air. This keeps your production facility clean and protects your employees from unnecessary dust exposure.
The machine is suitable for a variety of release agents such as talc, chalk, stearates, or graphite. Depending on the requirements, the dosing can be individually adjusted.
The powdering machine is designed to minimize maintenance effort and downtime. Thanks to high-quality components, the machine remains operational for a long time, while regular maintenance is simple and quick to perform.
