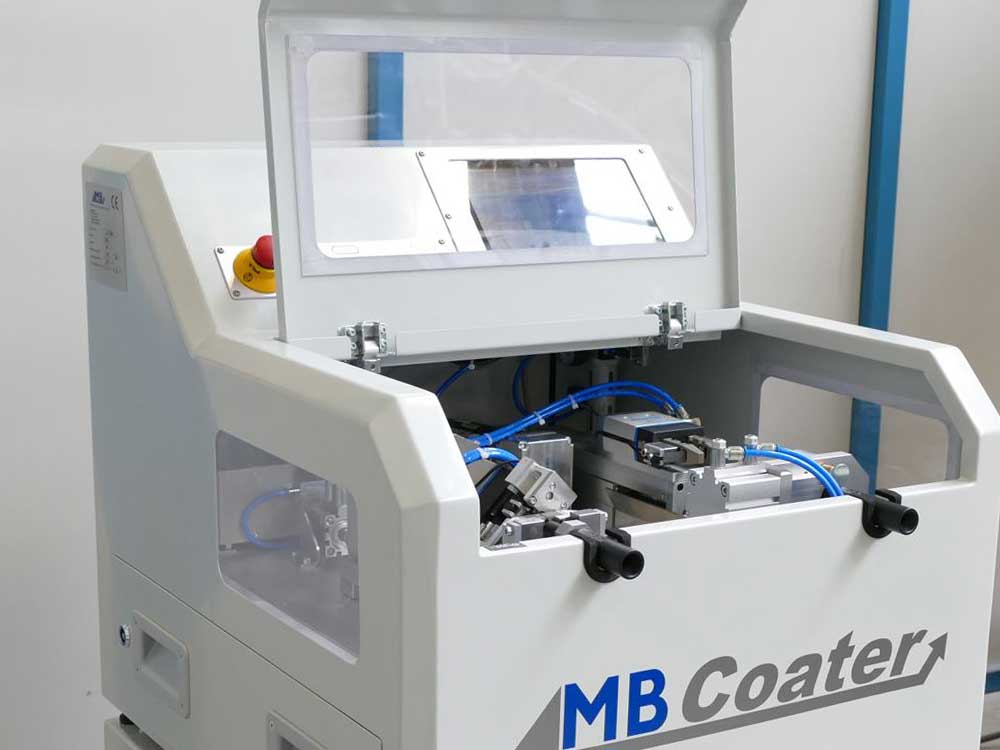

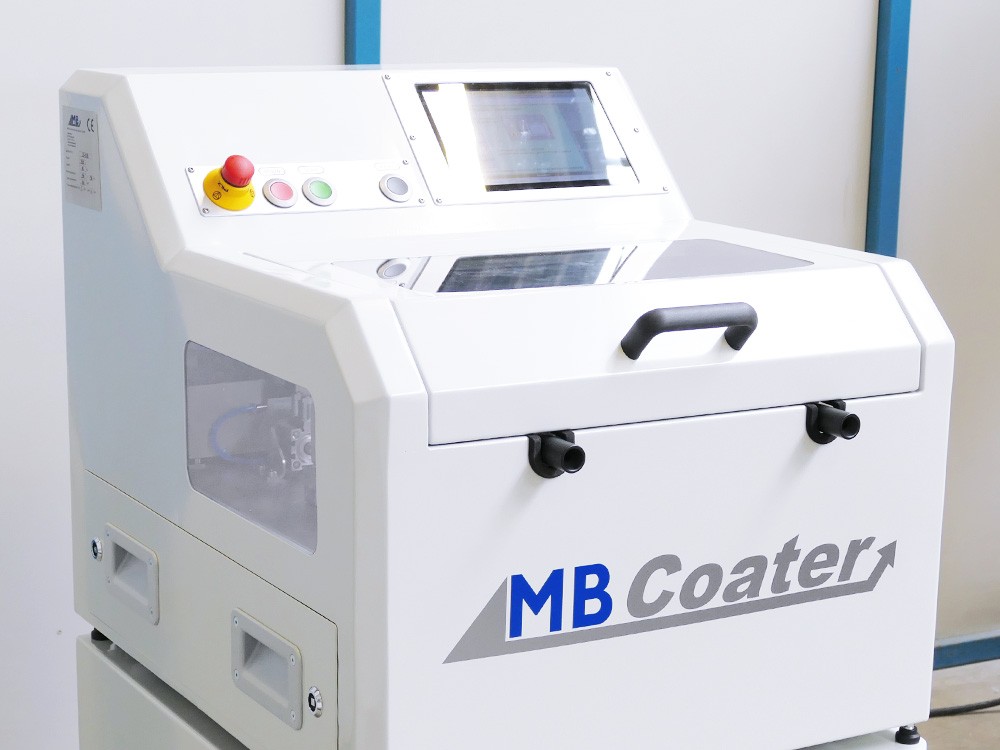

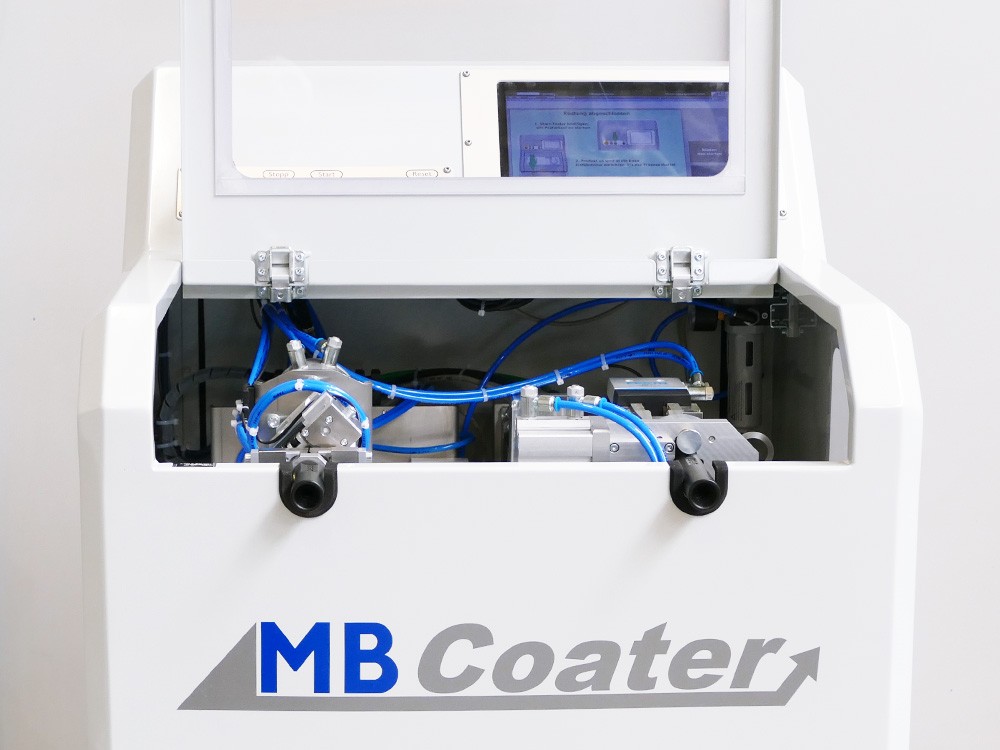

Standard-compliant cable adhesion testing: MB Coater Cable Adhesion Testing Device
- Integrated testing according to ISO 19642-2:2019 – reproducible and free from operator errors
- Compact all-in-one solution for production and laboratory
- Seamless documentation with direct data export or printout
Ensure your product quality!
Automated, reproducible adhesion testing in one device
In many production environments, the adhesion of the cable sheath is still tested off the actual line – either through manual procedures or via external service providers. These established processes have proven effective, but can be further developed: they offer opportunities to significantly improve accuracy, efficiency, and reaction speed.
With an automated, integrated solution, testing can take place directly on the production line – without media breaks, without waiting times, and with maximum reproducibility. This ensures that adhesion is tested under constant conditions, and the measurement results are objective and reliable. The test data is immediately available and can be seamlessly integrated into internal quality assurance. This opens up new possibilities in process reliability – especially with increasing demands for documentation and traceability.
No waiting times due to the elimination of external laboratories
Continuous testing readiness in the process
Meeting increasing demands for traceability
Test directly in-line instead of waiting for results
The MB Coater Cable Adhesion Testing Device was specifically developed for the requirements of the cable industry. It offers a technical solution that combines measurement reliability, ease of use, and documentation in one system.
Compact
Stripping, cutting to length, and standard-compliant adhesion testing are performed fully automatically in a single system. This way, you avoid media breaks and increase efficiency directly on the line.
Reproducible
The test results are independent of the operator and determined under constant conditions. This increases comparability and builds trust in internal and external testing procedures.
Flexible
The system is mobile and requires little space – ideal for production or laboratory. Test lengths between 50 and 120 mm are flexibly adjustable and can be stored in the recipe management.
Why leading industrial companies rely on us
Experience
25 years of experience in the development of extrusion downstream machines, special machines, and welded assemblies
Trust
Our machines are used worldwide in leading production facilities.
Reliability
Robustly built and designed for decades of reliable operation
Individuality
Variable designs, finely adjustable processes, and well-conceived special solutions.
Functions and Features of our Cable Adhesion Testing Device
All necessary process steps in one device: The cable is automatically stripped, cut to the required test length, and then the sheath adhesion is tested in a reproducible manner.
- Integrated stripping, cutting to length, and force-controlled adhesion testing directly integrated into the testing process
- Standard-compliant testing according to ISO 19642-2:2019 with reproducible measurement results without operator influence
- Recipe management for product-specific storage of test parameters and easy reuse
- Ethernet and USB interface for seamless integration into existing QA systems
- Direct display, storage, and printout of test results via control panel and printer connection
| Max. Product diameter | 12 mm (others on request) |
| Test lengths | min. 50 mm, max. 120 mm (others on request) |
| Dimensions (LxWxH) | 700 x 1250 x 800 mm |
| Electrical connection | 230 V, 50 Hz |
| Max. Compressed air connection | 6 bar |
Others on request.
FAQ - Frequently Asked Questions
The results can be stored directly on the device, exported via USB stick, or transferred to the internal network. A printer connection also allows for on-site output.
Yes, the test length is flexibly adjustable between 50 mm and 120 mm. For other lengths, please contact us directly.
Due to its compact design, the testing device can be easily used at various workstations – stationary or mobile.
The adhesion test can be performed according to ISO 19642-2:2019. We are happy to check other standard specifications individually.
