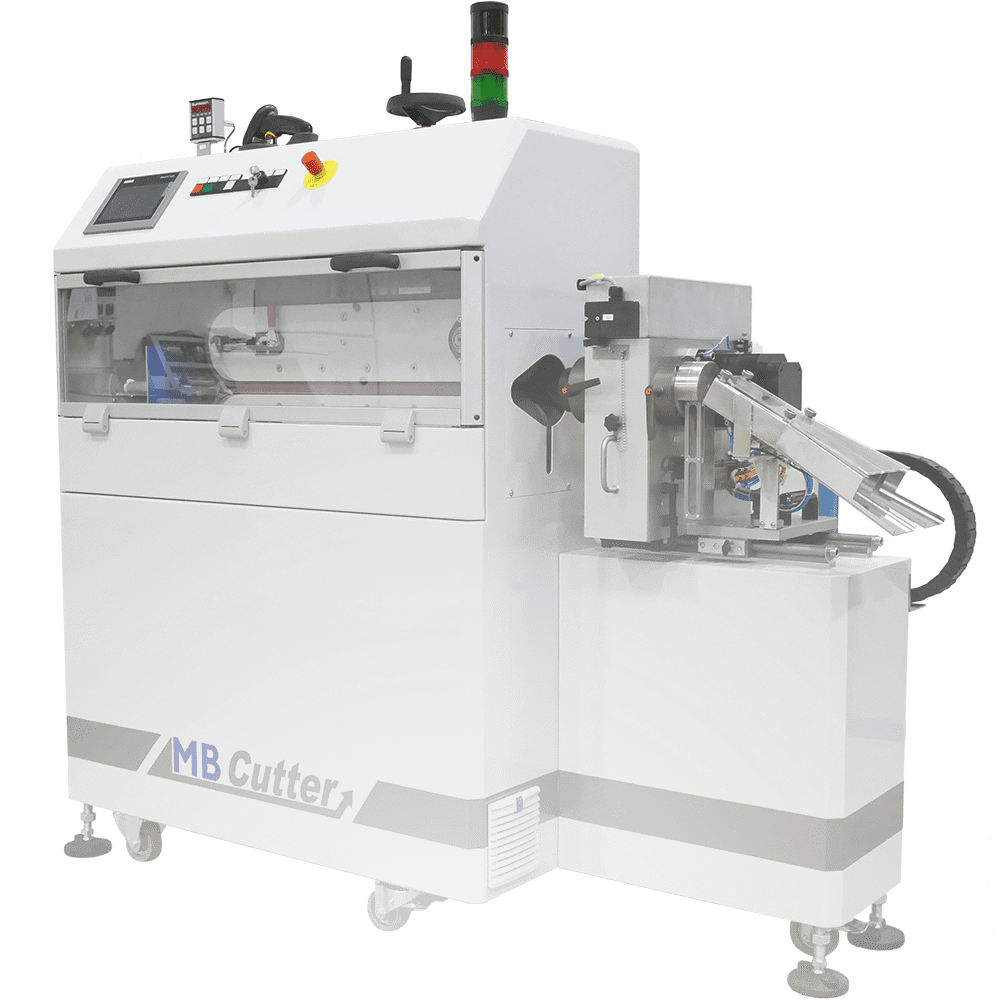

Combines belt puller and rotary cutter in minimal space: Combined Cutting System CC
- Cutting and Pulling Perfectly Combined
- Ideally matched to your process engineering requirements
- Complete system solution from a single source
Maximize your production efficiency!
One machine, two functions, zero compromises
Especially when cutting hoses and profiles, it is crucial that every step functions reliably – from exact length guidance to a clean cut. The Combined Cutting System CC meets exactly these requirements. It combines the belt puller and the rotary cutter in a well-designed system that not only saves space but is also technically perfectly coordinated.
This allows high line speeds and precise cuts to be effortlessly combined – with a cutting quality that consistently impresses. Anyone who focuses on efficiency, accuracy, and simple integration in their production will make the right choice for long-term process reliability with the Combined Cutting System CC.
Saves Space Without Compromise
Cuts Precisely Even at Full Speed
Perfectly Coordinated Puller with Cutting Unit
The Technology Behind the Precision of the Combined Cutting System CC

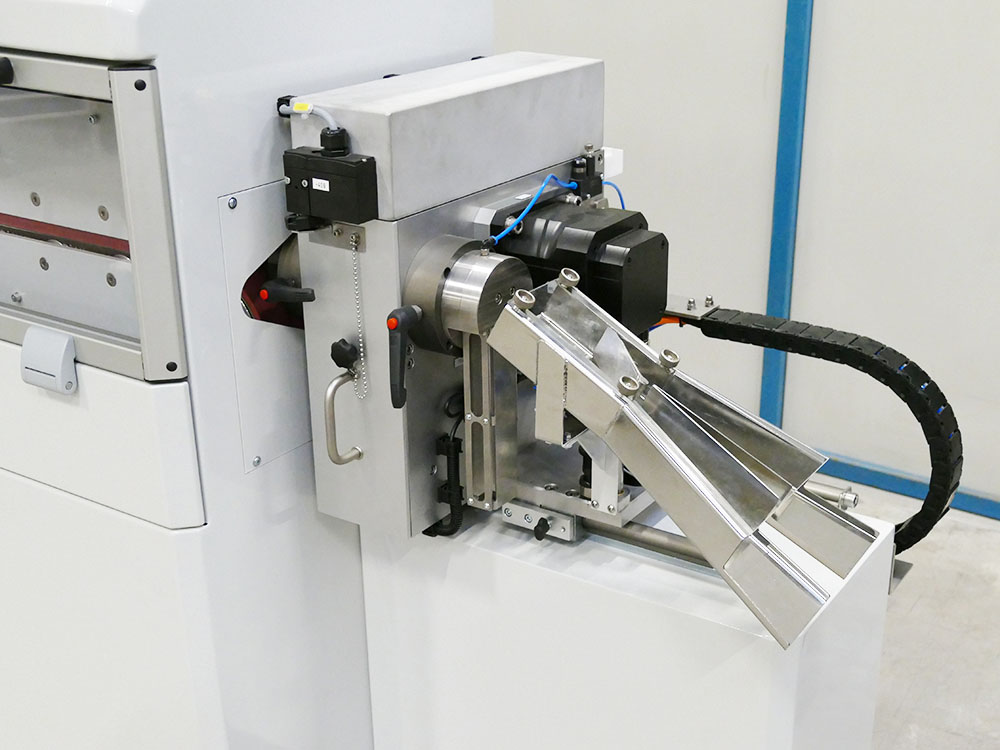

The core of the Combined Cutting System CC is the intelligent combination of two proven components: a powerful belt puller and a high-precision rotary cutter.
Cutting Reliability
Even at high line speeds, the cam application ensures precisely controlled knife movements. This results in clean cut surfaces with minimal length tolerances – consistently and reliably.
Double Power

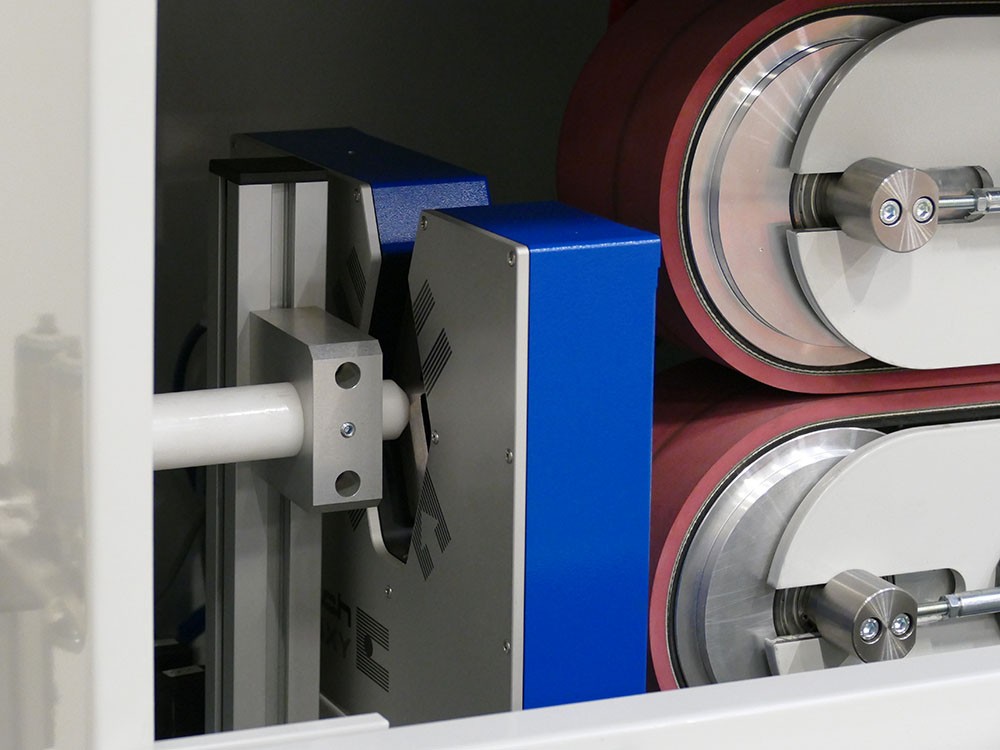

The BP belt puller and the RC rotary cutter work as a perfectly coordinated unit. This not only saves space but also optimizes the entire cutting process.
Plug & Run
The Combined Cutting System CC integrates seamlessly into existing lines and is immediately ready for use. Its operation is intuitive, and maintenance is low – ideal for continuous industrial use.
Why leading industrial companies rely on us
Experience
25 years of experience in the development of extrusion downstream machines, special machines, and welded assemblies
Trust
Our machines are used worldwide in leading production facilities.
Reliability
Robustly built and designed for decades of reliable operation
Individuality
Variable designs, finely adjustable processes, and well-conceived special solutions.
Functions and Features of Our Combined Cutting System CC
- Cam application that dynamically adjusts the knife to the product speed – for consistently precise cuts

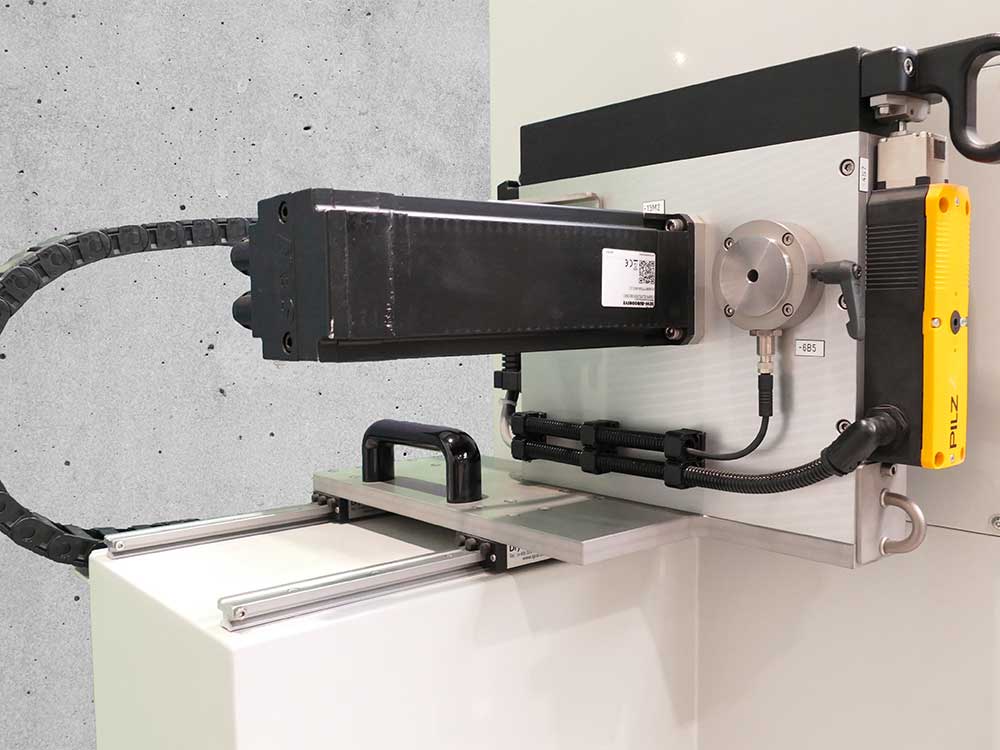

- Latest generation servo axes that ensure exact and uniform transport speed
- Line speed up to 300 m/min, without compromising cutting quality

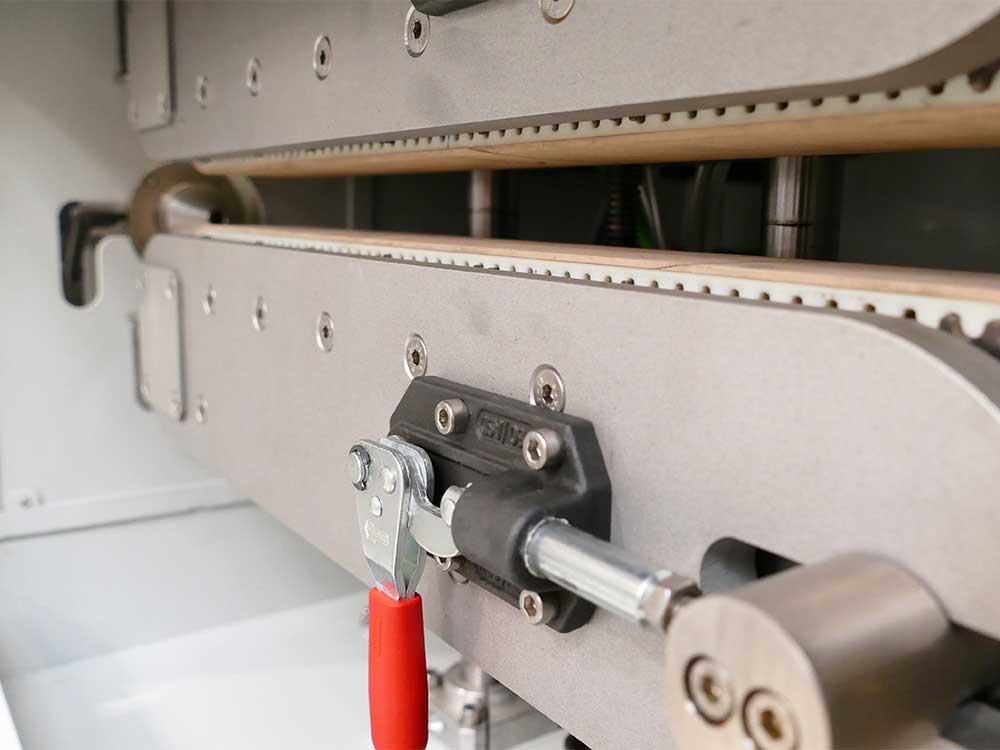

- Quick-change system for rapid replacement of drive belts with minimal downtime
- Robust, powder-coated welded construction, manufactured in-house – durable and low-maintenance
- Seamless integration into existing lines, without complex adjustments or conversions
In conjunction with other components such as the non-contact sag control, a picking unit, or a winder, a system is created that not only works reliably but also understands your production logic.
- Swipe to the side
| CC-250/40 | CC-600/40 | CC-600/80 | |
|---|---|---|---|
| Contact length | 250 mm | 600 mm | 600 mm |
| Max product dimensions | 39 mm | 39 mm | 79 mm |
| Belt width | 50 mm | 100 mm | 100 mm |
| Tractive force (depending on max. speed) | 250 N | 400 N (1 drive)800 N (2 drives) | 400 N (1 drive)800 N (2 drives) |
| Max. transport speed | 100 m/min | 300 m/min | 300 m/min |
| Max. cutting frequency with one blade | 4000 1/min | 4000 1/min | 4000 1/min |
| Cutting length resolution | 0.1 mm | 0.1 mm | 0.1 mm |
| Transport and cutting motor | Servo drives | Servo drives | Servo drives |
| Electrical connection power | 5 kW | 7 kW | 10 kW |
| Dimensions (L x H x W) | 1250 x 1420 x 650 mm | 1900 x 1650 x 960 mm | 1900 x 1650 x 960 mm |
| Weight | approx. 210 kg | approx. 580 kg | approx. 580 kg |
Further information on request.
FAQ - Frequently Asked Questions
The machine is suitable for hoses and profiles made of rubber or plastic with an outer diameter of up to 100 mm. This makes it optimally suited for typical applications in extrusion technology and covers a wide range of products.
The system is designed for line speeds of up to 300 m/min – without compromising cutting quality. Even at high cycle rates, the process remains stable and reliably reproducible.
Thanks to our cam application and precise servo axes, you achieve minimal length tolerances – reproducible and consistent. Even with changing production conditions, the cutting length remains reliably within the target range.

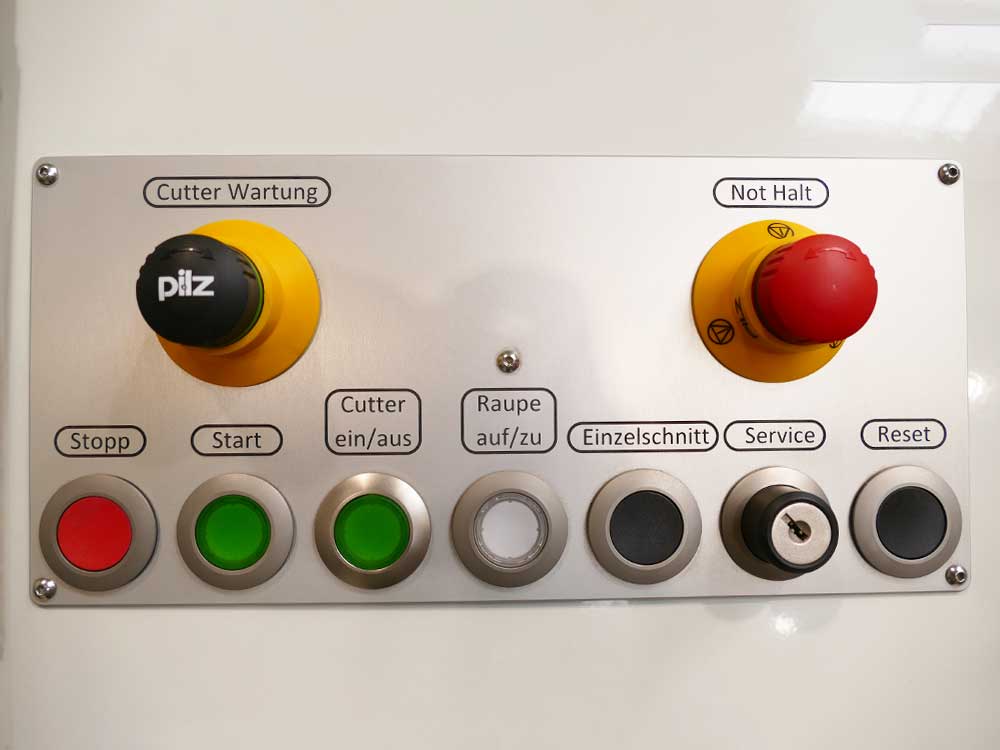

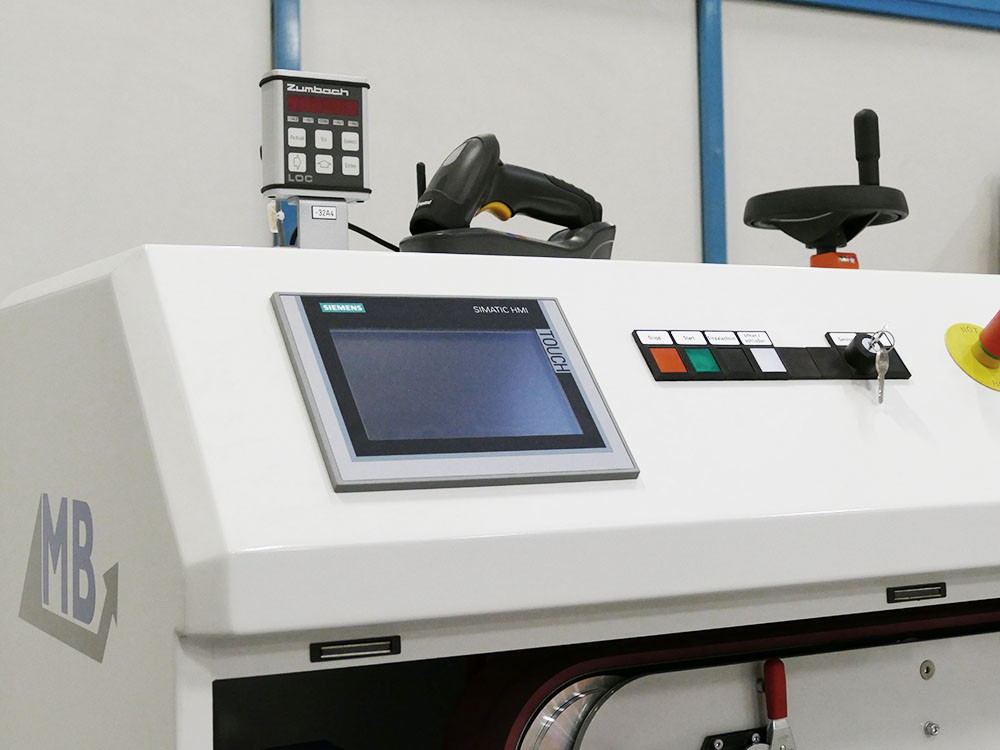

The system was designed so that it can be intuitively controlled even by operators without special training. The user interface is clearly structured, logically designed, and supports quick familiarization during ongoing operation.
By combining the belt puller and cutting unit, you save valuable space – ideal even for compact production environments. The well-thought-out design enables efficient space utilization without compromising performance.
